COLD ROLLING LINES FOR STEEL RIBBED WIRE COILS

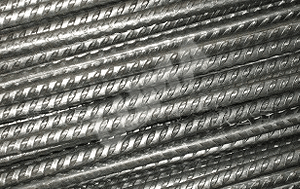

cold rolling lines for the transformation of wire rod in coil to ribbed wire in coils for construction industry,suitable for low carbon steel wires.

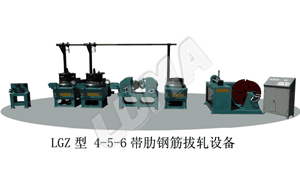

The typical line is composed of the following units:

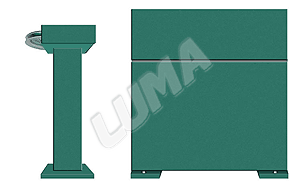

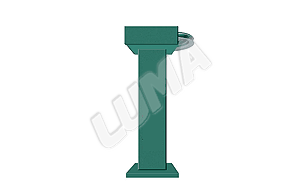

1、pay-off,
2、descaler
3、a lubricating unit,

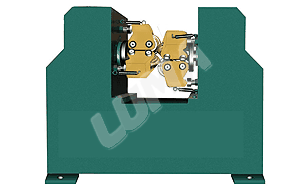

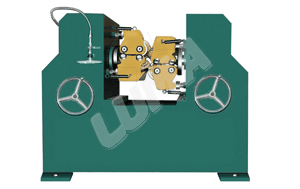

4、2 units of cold rolling cassettes
(reduction by 2 rolling heads with 3 rolls, each set at 120°)Cassettes are suitable for reducing smooth wire or producing ribbed (indented) wire. Typically used for the production of reinforced wire for construction purposes in one or two reduction passes. The rolls are mounted on supports that open and close simultaneously, easy repositioning of the roll gap after any new product dimension change

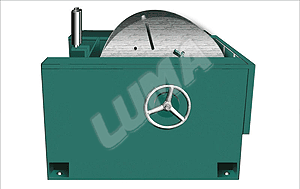

•wire drawing unit
•stress-relieving unit
•spooler
