1.Light-Duty Expanded Metal Mesh Machine (Model: LM25-16, LM25-25)

The workable material can be:
steel,aluminium, and stainless steel

The application of the products can be used in the following fields:
Machinery, construction, traffic, petroleum, urban construction, hardware, and defence, etc.

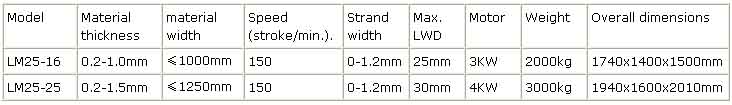

Main Technical Parameters:

2. Heavy-Duty Expanded Metal Mesh Machine( Model: LM25-100, LM25-160B)

The application of the products can be used in the following fields:
Shipbuiding, mine, machinery, construction, traffic, petroleum, urban construction, hardware and defence, etc.

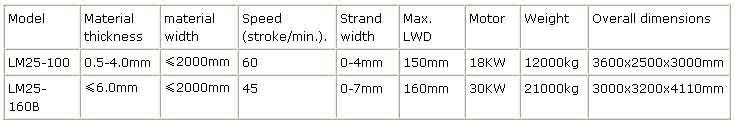

Main technical parameters:

3. Mini-Exapanded Metal Mesh Machine (Model: LM25-6.3A , LM25-6.3B)
The Mini-expanded metal mesh machine have two models:LM25-6.3A and LM25-6.3B. It can make the expanded metal mesh with max. material thickness 1mm and max. material width 500mm. The model LM25-6.3B adopts the advanced technologies such as oilless lubricating, adjustable stepless distance of material feed, and automatic cutting.

The workable material can be：
steel, stainless steel and aluminium

The application of the products can be used in the following fields:
Light industry, electrical equipment, mini-electronics, hardware, and mini-battery, etc.

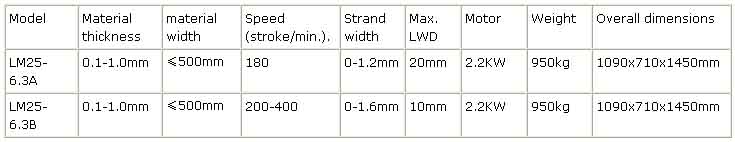

Main technical parameters:

4. Medium-expanded metal mesh machine (Model: LM25-63)
This machine can make the mesh with max. material thickness 2.5mm and max. material width 2000mm.

The application of the products can be used in the following fields:
Machinery, construction, traffic, petroleum, urban construction, hardware, and defence, etc.

Main technical parameters:
